fPcgi Program Documentation - SCO Openserver/Unixware version

March 26, 2001 Revision

Installation - Steps to Follow

• Read this documentation thoroughly
• Install Apache Web Server if you haven't already installed it before. You can get the latest copy at www.apache.org
• Install the current version of filePro if you haven't already done so. Although you can use fPcgi with older versions of filePro, the sample application uses filePro 5.0 HTML commands in the processing tables that create the return HTML documents.
• Remove the default SCO Netscape Fasttrack web server
• Review the files that are on the CD-ROM distribution Disk as follows:



  Filename	Description/Contents	Default location
  readme.htm	This document. Also stored as fpcgidocsco.htm in htdocs	/usr/local/apache/htdocs
  fpcgibin.tar	fPcgi executible and corresponding configuration files which must be put in the cgi-bin directory of your web server: fpcgi fpcgi.env fpcgicmd.txt counter	/usr/local/apache/cgi-bin
  fpcgihtm.tar	Sample demo html documents and supporting images which should be put in the web server root documents directory [htdocs recommended] an images subdirectory: fpcgidemosco.htm demofindsco.htm demosavesco.htm fpcgidocsco.htm images/fpcgihow.jpg images/pwrfpcgi.gif	/usr/local/apache/htdocs for the .htm files and /usr/local/apache/htdocs/images for the images
  fpcgiapp.tar	The democgi filepro file that should be placed in your filepro directory where your other filepro files are located	/appl/filepro/democgi
  images subdirectory	The images subdirectory contains the following images so you can access the readme.htm file directly off the CD-ROM with your browser: fpcgihow.jpg pwrfpcgi.gif	/usr/local/apache/htdocs/images

• Move the fpcgibin.tar file to the parent of the cgi-bin directory and from the command line enter the following command:

  tar xvf fpcgibin.tar


  The files listed above for the cgi-bin directory should extract into the cgi-bin directory.
• Move the fpcgiapp.tar file to the parent of the filepro directory and from the command line enter the following command:

  tar xvf fpcgiapp.tar


  The democgi file should create and extract into the /appl/filepro/democgi directory.
• Move the fpcgihtm.tar file to the parent of the htdocs directory and from the command line enter the following command:

  tar xvf fpcgihtm.tar


  The files listed above for this tar file should extract into the htdocs directory and its images subdirectory.
• Modify the profile files as discussed in the Setting up SCO environment Variables... section later in this documnent.
• Modify the httpd.conf file as found in the /usr/local/apache/conf directory as per the sample listed in the Setting up Apache Web Server... later in this document.
• Set the correct ownership and permissions as discussed in the Setting the Correct Ownership and Permissions... section later in this documnent.
• Make sure there is a filepro user with a group of group as discussed in the Making sure there is a user named filepro... section later in this document.
• Make sure that the fpcgi.env file is correct as discussed in the Making sure that fpcgi.env ... section later in this document.
• Verify that the sample application works correctly by pointing your browser to hostname/fpcgidemolnx.htm
  If the sample demo does not work, refer to the troubleshooting section.

---

Setting up SCO environment Variables to handle fPcgi requests

• FOR SCO VERSION
  • The profile file in the /etc directory should be modified to add the following filePro environment variables required for the fPcgi program to execute filePro properly:

    PATH=$PATH:/appl/fp
    PFDATA=;export PFDATA
    PFPROG=/appl;export PFPROG
    PFDIR=/appl;export PFDIR
    PFSERVROOT=/usr/local/apache/htdocs/;export PFSERVROOT
    PFMENU=/appl/fp/menus;export PFMENU
    PFGLOB=/appl/fp/lib/edits;export PFGLOB
    Change next line to the IPaddress of your server
    PFSERVER=127.0.0.1;export PFSERVER
    PFCOUNTERMAX=50;export PFCOUNTERMAX
    FPCGILOG=/tmp/fpcgi.log;export FPCGILOG
    PFUFLAG=ON;export PFUFLAG

  • Changes to .profile file in root directory:

    The .profile file in the root directory should be modified to add the following filePro environment variables required for the fPcgi program to execute filePro properly:


    PATH=/bin:/etc:/usr/bin:/tcb/bin:/appl/fp
    PFDATA=;export PFDATA
    PFPROG=/appl;export PFPROG
    PFDIR=/appl;export PFDIR
    PFSERVROOT=/usr/local/apache/htdocs/;export PFSERVROOT
    PFMENU=/appl/fp/menus;export PFMENU
    PFGLOB=/appl/fp/lib/edits;export PFGLOB
    Change next line to the IPaddress of your server
    PFSERVER=127.0.0.1;export PFSERVER
    PFCOUNTERMAX=50;export PFCOUNTERMAX
    FPCGILOG=/tmp/fpcgi.log;export FPCGILOG
    PFADDWP=OFF;export PFADDWP
    PFUFLAG=ON;export PFUFLAG

---

Setting up Apache Web Server to be able to use fPcgi

• Changes to httpd.conf file... please refer to modified items in bold which need to be correct to operate.
• Please note that these changes are necessary reflect the default installation of both Apache and filePro.
• The actual httpd.conf file contents may vary depending on the version of Apache you have installed.
• In order to save space in this document, the following listing is only for the Main Server Section where the modifications are necessary:


  ### Section 2: 'Main' server configuration
  #
  # The directives in this section set up the values used by the 'main'
  # server, which responds to any requests that aren't handled by a
  # <VirtualHost> definition.  These values also provide defaults for
  # any <VirtualHost> containers you may define later in the file.
  #
  # All of these directives may appear inside <VirtualHost> containers,
  # in which case these default settings will be overridden for the
  # virtual host being defined.
  #

  #
  # If your ServerType directive (set earlier in the 'Global Environment'
  # section) is set to "inetd", the next few directives don't have any
  # effect since their settings are defined by the inetd configuration.
  # Skip ahead to the ServerAdmin directive.
  #

  #
  # Port: The port to which the standalone server listens. For
  # ports < 1023, you will need httpd to be run as root initially.
  #
  Port 80

  #
  # If you wish httpd to run as a different user or group, you must run
  # httpd as root initially and it will switch.
  #
  # User/Group: The name (or #number) of the user/group to run httpd as.
  #  . On SCO (ODT 3) use "User nouser" and "Group nogroup".
  #  . On HPUX you may not be able to use shared memory as nobody, and the
  #    suggested workaround is to create a user www and use that user.
  #  NOTE that some kernels refuse to setgid(Group) or semctl(IPC_SET)
  #  when the value of (unsigned)Group is above 60000;
  #  don't use Group nobody on these systems!
  #
  User filepro
  Group group

  #
  # ServerAdmin: Your address, where problems with the server should be
  # e-mailed.  This address appears on some server-generated pages, such
  # as error documents.
  #
  ServerAdmin root@localhost

  #
  # ServerName: allows you to set a host name which is sent back to clients for
  # your server if it's different than the one the program would get (i.e., use
  # "www" instead of the host's real name).
  #
  # Note: You cannot just invent host names and hope they work. The name you
  # define here must be a valid DNS name for your host. If you don't understand
  # this, ask your network administrator.
  # If your host doesn't have a registered DNS name, enter its IP address here.
  # You will have to access it by its address (e.g., http://123.45.67.89/)
  # anyway, and this will make redirections work in a sensible way.
  #
  ServerName 127.0.0.1

  #
  # DocumentRoot: The directory out of which you will serve your
  # documents. By default, all requests are taken from this directory, but
  # symbolic links and aliases may be used to point to other locations.
  #
  DocumentRoot "/usr/local/apache/htdocs"

  #
  # Each directory to which Apache has access, can be configured with respect
  # to which services and features are allowed and/or disabled in that
  # directory (and its subdirectories).
  #
  # First, we configure the "default" to be a very restrictive set of
  # permissions.
  #
  <Directory />
      Options FollowSymLinks
      AllowOverride None
  </Directory>

  #
  # Note that from this point forward you must specifically allow
  # particular features to be enabled - so if something's not working as
  # you might expect, make sure that you have specifically enabled it
  # below.
  #

  #
  # This should be changed to whatever you set DocumentRoot to.
  #
  <Directory "/usr/local/apache/htdocs">

  #
  # This may also be "None", "All", or any combination of "Indexes",
  # "Includes", "FollowSymLinks", "ExecCGI", or "MultiViews".
  #
  # Note that "MultiViews" must be named *explicitly* --- "Options All"
  # doesn't give it to you.
  #
      Options Indexes Includes FollowSymLinks

  #
  # This controls which options the .htaccess files in directories can
  # override. Can also be "All", or any combination of "Options", "FileInfo",
  # "AuthConfig", and "Limit"
  #
      AllowOverride None

  #
  # Controls who can get stuff from this server.
  #
      Order allow,deny
      Allow from all
  </Directory>

  #
  # UserDir: The name of the directory which is appended onto a user's home
  # directory if a ~user request is received.
  #
  UserDir public_html

  #
  # Control access to UserDir directories.  The following is an example
  # for a site where these directories are restricted to read-only.
  #
  #<Directory /home/*/public_html>
  #    AllowOverride FileInfo AuthConfig Limit
  #    Options MultiViews Indexes SymLinksIfOwnerMatch IncludesNoExec
  #    <Limit GET POST OPTIONS PROPFIND>
  #        Order allow,deny
  #        Allow from all
  #    </Limit>
  #    <Limit PUT DELETE PATCH PROPPATCH MKCOL COPY MOVE LOCK UNLOCK>
  #        Order deny,allow
  #        Deny from all
  #    </Limit>
  #</Directory>

  #
  # DirectoryIndex: Name of the file or files to use as a pre-written HTML
  # directory index.  Separate multiple entries with spaces.
  #
  DirectoryIndex index.html index.htm index.shtml index.php index.php4 index.php3 index.cgi

  #
  # AccessFileName: The name of the file to look for in each directory
  # for access control information.
  #
  AccessFileName .htaccess

  #
  # The following lines prevent .htaccess files from being viewed by
  # Web clients.  Since .htaccess files often contain authorization
  # information, access is disallowed for security reasons.  Comment
  # these lines out if you want Web visitors to see the contents of
  # .htaccess files.  If you change the AccessFileName directive above,
  # be sure to make the corresponding changes here.
  #
  # Also, folks tend to use names such as .htpasswd for password
  # files, so this will protect those as well.
  #
  <Files ~ "^\.ht">
      Order allow,deny
      Deny from all
  </Files>

  #
  # CacheNegotiatedDocs: By default, Apache sends "Pragma: no-cache" with each
  # document that was negotiated on the basis of content. This asks proxy
  # servers not to cache the document. Uncommenting the following line disables
  # this behavior, and proxies will be allowed to cache the documents.
  #
  #CacheNegotiatedDocs

  #
  # UseCanonicalName:  (new for 1.3)  With this setting turned on, whenever
  # Apache needs to construct a self-referencing URL (a URL that refers back
  # to the server the response is coming from) it will use ServerName and
  # Port to form a "canonical" name.  With this setting off, Apache will
  # use the hostname:port that the client supplied, when possible.  This
  # also affects SERVER_NAME and SERVER_PORT in CGI scripts.
  #
  UseCanonicalName On

  #
  # TypesConfig describes where the mime.types file (or equivalent) is
  # to be found.
  #
  TypesConfig /usr/local/apache/conf/mime.types

  #
  # DefaultType is the default MIME type the server will use for a document
  # if it cannot otherwise determine one, such as from filename extensions.
  # If your server contains mostly text or HTML documents, "text/plain" is
  # a good value.  If most of your content is binary, such as applications
  # or images, you may want to use "application/octet-stream" instead to
  # keep browsers from trying to display binary files as though they are
  # text.
  #
  DefaultType text/plain

  #
  # The mod_mime_magic module allows the server to use various hints from the
  # contents of the file itself to determine its type.  The MIMEMagicFile
  # directive tells the module where the hint definitions are located.
  # mod_mime_magic is not part of the default server (you have to add
  # it yourself with a LoadModule [see the DSO paragraph in the 'Global
  # Environment' section], or recompile the server and include mod_mime_magic
  # as part of the configuration), so it's enclosed in an <IfModule> container.
  # This means that the MIMEMagicFile directive will only be processed if the
  # module is part of the server.
  #
  <IfModule mod_mime_magic.c>
      MIMEMagicFile /usr/share/magic
  </IfModule>

  #
  # HostnameLookups: Log the names of clients or just their IP addresses
  # e.g., www.apache.org (on) or 204.62.129.132 (off).
  # The default is off because it'd be overall better for the net if people
  # had to knowingly turn this feature on, since enabling it means that
  # each client request will result in AT LEAST one lookup request to the
  # nameserver.
  #
  HostnameLookups Off

  #
  # ErrorLog: The location of the error log file.
  # If you do not specify an ErrorLog directive within a <VirtualHost>
  # container, error messages relating to that virtual host will be
  # logged here.  If you *do* define an error logfile for a <VirtualHost>
  # container, that host's errors will be logged there and not here.
  #
  ErrorLog /usr/local/apache/logs/error_log

  #
  # LogLevel: Control the number of messages logged to the error_log.
  # Possible values include: debug, info, notice, warn, error, crit,
  # alert, emerg.
  #
  LogLevel warn

  #
  # The following directives define some format nicknames for use with
  # a CustomLog directive (see below).
  #
  LogFormat "%h %l %u %t \"%r\" %>s %b \"%{Referer}i\" \"%{User-Agent}i\"" combined
  LogFormat "%h %l %u %t \"%r\" %>s %b" common
  LogFormat "%{Referer}i -> %U" referer
  LogFormat "%{User-agent}i" agent

  #
  # The location and format of the access logfile (Common Logfile Format).
  # If you do not define any access logfiles within a <VirtualHost>
  # container, they will be logged here.  Contrariwise, if you *do*
  # define per-<VirtualHost> access logfiles, transactions will be
  # logged therein and *not* in this file.
  #
  CustomLog /usr/local/apache/logs/access_log common

  #
  # If you would like to have agent and referer logfiles, uncomment the
  # following directives.
  #
  #CustomLog /usr/local/apache/logs/referer_log referer
  #CustomLog /usr/local/apache/logs/agent_log agent

  #
  # If you prefer a single logfile with access, agent, and referer information
  # (Combined Logfile Format) you can use the following directive.
  #
  #CustomLog /usr/local/apache/logs/access_log combined

  #
  # Optionally add a line containing the server version and virtual host
  # name to server-generated pages (error documents, FTP directory listings,
  # mod_status and mod_info output etc., but not CGI generated documents).
  # Set to "EMail" to also include a mailto: link to the ServerAdmin.
  # Set to one of:  On | Off | EMail
  #
  ServerSignature On

  #
  # Aliases: Add here as many aliases as you need (with no limit). The format is
  # Alias fakename realname
  #
  # Note that if you include a trailing / on fakename then the server will
  # require it to be present in the URL.  So "/icons" isn't aliased in this
  # example, only "/icons/"..
  #
  Alias /icons/ "/usr/local/apache/icons/"

  <Directory "/usr/local/apache/icons">
      Options Indexes MultiViews
      AllowOverride None
      Order allow,deny
      Allow from all
  </Directory>

  #
  # ScriptAlias: This controls which directories contain server scripts.
  # ScriptAliases are essentially the same as Aliases, except that
  # documents in the realname directory are treated as applications and
  # run by the server when requested rather than as documents sent to the client.
  # The same rules about trailing "/" apply to ScriptAlias directives as to
  # Alias.
  #
  ScriptAlias /cgi-bin/ "/usr/local/apache/cgi-bin/"
  ScriptLog "/tmp/apachecgi.log"
  SetEnv PFDATA
  # Assumes the filepro data file directories are located in /appl/filepro
  SetEnv PFDIR /appl
  # Assumes the fp executables are located in /appl/fp
  SetEnv PFPROG /appl
  SetEnv PFSERVROOT /usr/local/apache/htdocs/
  SetEnv PFGLOB /appl/fp/lib/edits
  SetEnv PFSERVER 127.0.0.1
  SetEnv PFCOUNTERMAX 100
  setEnv FPCGILOG /tmp/fpcgi.log
  SetEnv PFADDWP OFF
  SetEnv PFUFLAG ON
  PassEnv PATH HOME UID COLUMNS LINES TERM

  #
  # "/usr/local/apache/cgi-bin" should be changed to whatever your ScriptAliased
  # CGI directory exists, if you have that configured.
  #

  <Directory "/usr/local/apache/cgi-bin">
      AllowOverride None
      Options ExecCGI
      Order allow,deny
      Allow from all
  </Directory>

  # Assumes the fp executables are located in /appl/fp
  <Directory "/appl/fp">
      AllowOverride None
  #   Options None
      Options ExecCGI FollowSymLinks
      Order allow,deny
      Allow from all
  </Directory>

  #  REST OF httpd.conf stays intact


---

Starting and Stopping the Apache Web Server

Once you make the necessary changes to the Apache httpd.conf file, you must stop and then re-start the Apache Server.

To stop apache [default locations shown] type in /usr/local/apache/bin/apachtctl stop at a command line prompt and hit the Enter key. To re-start Apache type in /usr/localapache/bin/apachectl start at a command line prompt and hit the Enter key.

---

Setting the correct Ownership and Permissions for fPcgi to work

The server root directory where fPcgi creates the flat ASCII file filePro processing builds the return html document must have the correct permissions to allow fPcgi/filePro [User filepro Group group] to be able to read and write new files to it. Be sure to set the permissions accordingly.

Also you must be sure that thefpcgi file in /usr/local/apache/cgi-bin have complete read/write/execute permissions.

---

Making sure there is a user named filepro and a group named group

Since the Apache server is set up to run fPcgi as User filepro with a Group of group , make sure your server has user account called filepro and a Group called group before you try to run the sample application.

---

Making sure that fpcgi.env is correct

The fpcgi.env which is the the cgi-bin directory of the Apache server [default is /usr/local/apache/cgi-bin] needs to properly reflect the environment settings for both fPcgi and filePro in order for fPcgi to work properly.
Typical fpcgi.env file contents which assumes the the filePro executibles are in /appl/fp and that the filePro data files are in /appl/filepro:

PFDATA=
PFPROG=/appl
PFDIR=/appl
PFSERVROOT=/usr/local/apache/htdocs/
PFMENU=/appl/fp/menus
PFGLOB=/appl/fp/lib/edits
PFSERVER=127.0.0.1
FPCGILOG=/tmp/fpcgi.log
PFADDWP=OFF
PFUFLAG=ON
PFCOUNTERMAX=50
FPCGILOG=/tmp/fpcgi.log

---

How does filePro fPcgi work?

filePro fPcgi uses proven Internet/Intranet technology to provide you with a visual interface. A browser requests HTML documents from the HTTPd server and then displays HTML pages that are created by user developed filePro processing table(s) The browser then controls the input and updating of data by the user as directed by the HTML code, Javascript functions and Java applets.

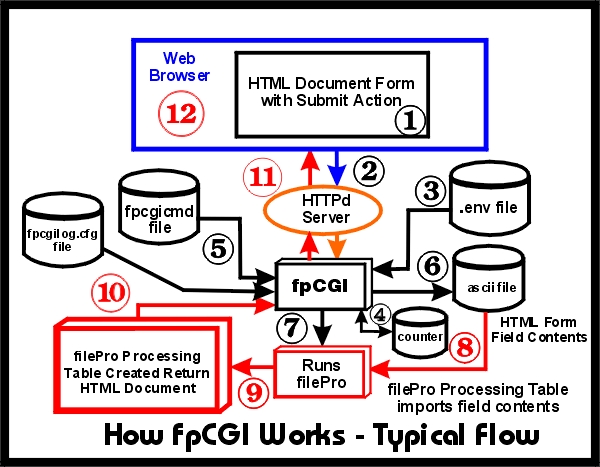

The following diagram illustrates the typical flow of requests and data between the browser, HTTPd server, fPcgi, and user developed filepro processing, databases and HTML pages:

Let's now step through the process and explain each piece.

1. The browser displays the initial HTML document and allows the input or update of information or responds to the user requests.


2. When the user is finished and has requested an action that requires the browser to get another document, the browser submits a request to the HTTPd server.


3. Typically, the requested action is for the HTTPd server to execute the fPcgi program. This request is specified in the HTML document using the FORM ACTION command and reserved hidden fields in the HTML document. The fPcgi executible file and its corresponding fpcgi.env, fpcgicmd.txt, and counter files are normally installed in the cgi-bin directory of the web server.


4. First the fPcgi program reads the counter file and uses its contents along with some hidden fields from the HTML document to construct a unique filename. It then increments the counter by one. It also reads the fpcgicmd.txt file to make sure the command that is about to be run is an authorized command. The command must be on the fpcgicmd.txt list in order for fPcgi to run it. If is is not on the list, fPcgi returns an error document back to the browser and the following steps do not take place.


5. The fPcgi program then creates a flat ASCII file in either the server root directory or the directory specified by Field_ddir (if present in the document) with all of the field contents, hidden and visible, one record per field. Each record contains the field name and its contents.


6. Then fPcgi, using the environment specified by the fpcgi.env file if the Field_env is not present in the document, executes the system commands that are specified in the Field_cmd hidden field(s). A typical system command would be, for example, to run Rreport specifying the filePro filename, output format, selection set, output processing table etc. If the Field_norcmd field is not present for the corresponding Field_cmd, fPcgi appends to the system command specified (using the -RW flag) the filename [less the .txt extension] of the flat ASCII file that contains HTML field information. It then executes the requested system command using the environment specified in the file specified by the Field_env variable, if present, or by the fpcgi.env field if Field_env is not present or uses the envirnoment specified in the autoexec.bat or unix profile file if neither Field_env or fpcgi.env exist. .


7. Rreport executes and determines the correct flat ascii filename it needs to import from using the @PW system variable function. The processing table then imports the field information.


8. The processing table processes the data, and on the basis of what is supposed to happen next creates an HTML document to be returned to the user. The filename of this HTML document is the same as the flat ACSII file but with an extension of .HTM [default] or an extension specified by Field_extension] in the original HTML document.


9. When the last Field_cmd system command finishes executing, fPcgi uses several hidden fields to determine where to find the filePro created HTML document that needs to be returned to the browser.


10. fPcgi then copies the return document to the root server directory or directory specified by Field_cdir if it is present. If Field_ddir is the same as Field_cdir, it knows that it doesn't need to do the copy.
11. It then requests that the HTTPd server pass back the return HTML document to the browser. If Field_return is present and contains a HTML page address, fPcgi will return that page instead of the page matching the flat ASCII file filename as above.

    For instance, if the HTML document includes
    <INPUT TYPE="Hidden" NAME="Field_return" VALUE="thankyou.htm">
    fPcgi will return thankyou.htm instead of looking for a filepro processing generated HTML document.

12. The HTTPd server passes the return HTML document back to the browser.


13. The browser reads and displays the returned document and the process continues...

---

A more detailed look at the pieces

Browser, HTML and HTTPd server: The browser provides the visual [GUI] interface to the user. It displays HTML documents which may be a combination of static and dynamic documents generated by user developed filepro processing table using the HTML command and JSFILE commands.

One of the most important things the browser does is to submit requests indirectly to fPcgi to retrieve and update database records and other user developed filePro system operations.

The browser actually submits a request to the HTTPd server to in our case, execute fPcgi. This is triggered by a 'submit' function in the HTML document. A typical Form Action line is as follows:

<FORM NAME="myform" TARGET="_parent" ACTION="http://127.0.0.1/cgi-bin/fpcgi" METHOD="POST">
Where the 127.0.0.1 is the HTTPd Server's IP Address.

As we saw in the diagram above the HTTPd server sits between the browser and the fPcgi program. The HTTPd server 'serves' up the HTML documents including any external Javascript files and Java applets needed by the HTML document to execute. It, in turn, 'serves' back to the browser the resulting user developed filePro processing table generated as requested by fPcgi.

In an Intranet or Internet environment, this HTTPd server is normally located on a server independent of the 'client' PC that is being run by the user.

fPcgi with its corresponding counter file and valid command file

This program is executed by a HTTPd server and, in turn, reads the fielded information from the HTML document that requested that it be run. It uses the Field_base contents, and the contents of the counter file to 'construct' a file name for the ASCII file it creates with the field contents from the HTML document. It then checks the fpcgicmd reserved command list to make sure the command is okay to be executed for security reasons. The fpcgicmd.txt file has the following structure:
First Word of System Command as it might appear in Field_Cmd fields:
Example:

rreport
dprodir

fPcgi generated flat ASCII file:

A typical flat ASCII file generated as the result of the request from the HTML document using a Action Method looks like this:

Field_ddir,/usr/local/apache/htdocs/
Field_rn,0
Field_base,xdemo
Field_fn,democgi
Field_cmd,rreport democgi -sr 1 -fp demosave -n
Field2,Lee
Field3,H
Field4,Machan
Field6,fP Technologies, Inc.
Field14,(317) 802-0187
Field15,
Field16,(317) 802-9378
Field17,lmachan@fptech.net
Field18,www,fptech.net
Field1,12345
Field22,This is a sample message

In this case, there are normal user fields being passed. This sample application followed the recommended field naming conventions, so they appear as Field2,Lee etc.
fPcgi command environment:

fPcgi runs the commands specified by the Field_cmd's using an environment specified as follows:

• by autoexec.bat or the unix shell script if there is not an fpcgi.env file or there is not a Field_env field in the document that specifies an environment file.
• OR the environment specified by the fpcgi.env file in the cgi-bin directory if there is not a Field_env hidden field that specifies an environment file
• OR the environment specified by the environment file specified by the Field_env hidden field in the HTML document.

Typical fpcgi.env file contents:

PFDATA=
PFPROG=/appl
PFDIR=/appl
PFSERVROOT=/usr/local/apache/htdocs/
PFMENU=/appl/fp/menus
PFGLOB=/appl/fp/lib/edits
PFSERVER=127.0.0.1
FPCGILOG=/tmp/fpcgi.log
PFADDWP=OFF
PFUFLAG=ON
PFCOUNTERMAX=50
FPCGILOG=/tmp/fpcgi.log

Reserved Hidden fields used by fPcgi and their functionality: [Currently, not all versions support these fields]

Field_base	This hidden field is used to tell fPcgi the first few characters of the flat ASCII and corresponding return HTML document filename. fPcgi constructs the ASCII filename by taking the Field_base contents, appending the counter file contents and adding the .txt extension. It then passes this filename less the extension to, lets say, rreport using the -RW flag.
Field_cdir	This is the directory location where fPcgi will copy the return document to before it redirects the browser to it. If Field_cdir is set to the same value as Field_ddir, it will not do the copy. The path is relative to the server document root directory. If Field_cdir is not present, fPcgi will copy the return HTML document to the server document root directory if Field_ddir is not equal to the server document root directory.
Field_cmd Field_cmd1 Field_cmd2 .... Field_cmd9	These fields contain the system command(s), up to 9, that you want the fPcgi program to execute. fPcgi will try to execute in the following order: Field_cmd Field_cmd1 Field_cmd2 .... Field_cmd9 Any or all of these hidden fields can be used - fPcgi looks for all of them, and if any of them exists it is executed. If there are errors executing any command then fPcgi exits with an error message. When the last command you have requested has finished being executed, fPcgi will return the HTML document back to the browser unless there is a corresponding Field_norcmd field present.
Field_ddir	This is a fully pathed directory location where you want fPcgi to put the flat ASCII file and where fPcgi expects to find the return HTML document your processing table creates as a result of a Field_cmd command. If you specify a directory other than the server document root directory, fPcgi will copy the return HTML document to the server document root directory before it re-directs the browser to it, unless Field_cdir is present and it points to a different copy to/re-direct to location. In which case, it copies the return HTML document to the location specified by Field_cdir and re-directs the browser to it there.
Field_env	Specifies the filename of the fPcgi environment file containing environment variables for fPcgi to use instead of the default environment set by autoexec.bat or a UNIX script for the variables set in the specified fpcgi env file. If this variable is not present fPcgi either uses the environment set by the fpcgi.env if it exists or uses the default environment set by either autoexec.bat [Windows] or .profile [UNIX]
Field_extension	Specifies the extension of return document that fPcgi will redirect back to the browser that was created by filepro processing. If Field_extension is not present in the document it will assume 'htm'
Field_frames	Specifies frame identifier and is passed through the -rw flag as frameid_commandpath
Field_log	Field_log which should contain the full path to a log file if you want one. This log file is created by fPcgi if it does not exist and is appended to if it does exist. This log file will have written to it - the date and time the program is started, any errors encounted, and exit message.
Field_nonull	Do not redirect standard fPcgi output to null when command is run by fPcgi.
Field_norcmd Field_norcmd1 Field_norcmd2 ... Field_norcmd9	If this hidden field is present and set to anything, fPcgi will not append an -rw flag and the flat ASCII filename at the end of the corresponding system command. Format is Field_norcmdN where N is the corresponding command number. See Field_cmd above. This will allow you to run a batch file or other commands that do not require the -rw flag and flat ASCII filename.
Field_return	If this hidden field is present and set to anything, fPcgi will not expect a return HTML document based on Field_base and counter. Instead it will return the document specified by this field to the browser.

HTML document field naming conventions

It is reommended that the developer conform to the following field naming conventions.

Convention	Use
Field_cmd, Field_????	Used by fPcgi as described above. Additional ones can be used by your filepro processsing table(s) to pass such things as file names, record numbers , indexes, selection sets etc.
Field1, Field2 ...	Recommended that the developer use this convention for real input fields on your forms. The sample democgi filepro application uses the actual field number in a given file that is being accessed which simplifies the import/update process. See how its used in the demosave processing table.
Dummy???, Dummy??? ...	Recommended that the developer use this convention for dummy input fields on your forms.

---

Sample Form to trigger fPcgi action:

Please Leave a Message for Us

From Your Name:
Company:
Telephone:		Ext:
Fax:
Your E-Mail Address:
Your Web Page:
Your Customer Code:
Reference Previous Message #: [Leave Blank for New]
Message To:	ANYONE DAN BOND LEE MACHAN SUE RUBIN SALES BRAD WILLKIE	Call me?:	NOT NOW YES

Message:

---

---

When the submit button is clicked, this form will tell the browser to execute fPcgi as specified in the Action value.

fPcgi will examine the fields in the form including the hidden fields and will:

• Create the flat ascii file xdemoxxx where xdemo is specified by Field_base and xxx is the string value of the counter file in the cgi-bin directory.
• Verify and run rreport specifying the demosave processing table in the democgi file and append an -rw flag with the xdemoxxx value
• Since Field_rn's value was set to 0 in the form, the demosave processing table:
  • added a new record to the democgi file by doing a lookup new = democgi r=free -n and
  • updated the fields of this record by the contents of the fields passed to it in the flat ascii file [see the update labeled processing routine].
• It will return the xdemoxxx.htm file that was created by the demosave processing table [see bldhtml labeled processing routine] to the browser.

The HTML FORM in this example is for a SCO platform:

<HTML>
<!.. Copyright 2001, fP Technologies,Inc. All Rights Reserved>
<!.. Author Lee Machan>
<!.. Last Revision 3/21/2001 LHM>
<SCRIPT language=javascript>
function getHost()
{  var fphost=location.hostname
     document.myform.action="http://" + fphost + "/cgi-bin/fpcgi"
}
</SCRIPT>
<BODY onload="getHost()">
<FORM name="myform" ACTION="" METHOD="POST">
<INPUT TYPE="HIDDEN" NAME="Field_ddir" value="/usr/local/apache/htdocs/">
<INPUT TYPE="Hidden" NAME="Field_rn" VALUE="0">
<INPUT TYPE="HIDDEN" NAME="Field_base" value="xdemo" >
<INPUT TYPE="HIDDEN" NAME="Field_fn" value="democgi" >
<INPUT TYPE="HIDDEN" NAME="Field25" value="N" >
<INPUT type="hidden" name="Field_cmd" value="rreport democgi -sr 1 -fp demosave -n">
<INPUT type="hidden" name="Return" value="fpcgidemosco.htm"
<CENTER>
<table border=0>
<TR>
<TD><B><I>Please Leave a Message for Us</I></B></TD>
<TD>
</TABLE>

<TABLE BORDER="3" bgcolor="#D3D3D3">
<TR>
<TD ALIGN="RIGHT"><I>From Your Name:</FONT> </I></TD>
<TD><INPUT name="Field2" size="16" maxlength="15"></TD>
<TD><INPUT name="Field3" size="1" maxlength="1"></TD>
<TD><INPUT name="Field4" size="27" maxlength="25"></TD>
</TR>
<TR>
<TD ALIGN="RIGHT"><I>Company:</FONT> </I></TD>
<TD colspan="3"><INPUT name="Field6" size="40" maxlength="40"></TD>
</TR>
<TR>
<TD ALIGN="RIGHT"><I>Telephone: </I></TD>
<TD><INPUT name="Field14" size="14" maxlength="14"></TD>
<TD ALIGN="RIGHT"><I>Ext: </I></TD>
<TD colspan=3><INPUT name="Field15" size="5" maxlength="5"></TD>
</TR>
<TR>
<TD ALIGN="RIGHT"><I>Fax: </I></TD>
<TD colspan=5><INPUT name="Field16" size="14" maxlength="14"></TD>
</TR>
<TR>
<TD ALIGN="RIGHT"><I>Your E-Mail Address: </I></FONT></TD>
<TD colspan=5><INPUT name="Field17" size="47" maxlength="60"></TD>
</TR>
<TR>
<TD ALIGN="RIGHT"><I>Your Web Page: </I></FONT></TD>
<TD colspan=5><INPUT name="Field18" size="47" maxlength="60"></TD>
<TR>
<TD ALIGN="RIGHT"><I>Your Customer Code: </I></TD>
<TD colspan=5><INPUT name="Field1" size="6" maxlength="6"></TD>
</TR>

<TR>
<TD ALIGN="RIGHT"><I>Reference Previous Message #:<BR>[Leave Blank for New]</I></TD>
<TD colspan=5><INPUT name="Field24" size="6" maxlength="6"></TD>
</TR>

<TR>
<TD ALIGN="RIGHT"><I>Message To: </I></TD>
<TD>
<SELECT SIZE="1" NAME="Field23">
<OPTION VALUE="ANYONE" SELECTED="SELECTED">ANYONE</OPTION>
<OPTION VALUE="DAN BOND">DAN BOND</OPTION>
<OPTION VALUE="LEE MACHAN">LEE MACHAN</OPTION>
<OPTION VALUE="SUE RUBIN">SUE RUBIN</OPTION>
<OPTION VALUE="SALES">SALES</OPTION>
<OPTION VALUE="BRAD WILKIE">BRAD WILLKIE</OPTION>
</SELECT>
</TD>
<TD ALIGN="RIGHT"><I>Call me?: </I></TD>
<TD colspan=3>
<SELECT SIZE="1" NAME="Field26">
<OPTION VALUE="N" SELECTED="SELECTED">NOT NOW</OPTION>
<OPTION VALUE="Y">YES</OPTION>
</SELECT>
</TD></TR>
</TABLE>

<TABLE>
<TR>
<TD valign=top align=right><I>Message:</I></TD>
<TD><TEXTAREA Name="Field22" rows=3 cols=60 wrap=virtual value=" "></TEXTAREA></TD>
</TR>
</TABLE>
<HR>
<CENTER>
<INPUT TYPE="Submit" VALUE="Submit This Message">
<INPUT TYPE="RESET" VALUE="Clear Form">
</CENTER>
<HR>
</FORM>
<CENTER>
<P>You can use your browser to view the HTML source and see how fPcgi is set up to run filePro processing.</P>
<HR>
<IMG SRC="images/pwrfpcgi.gif">
<HR>
<H3>filePro and filePro Plus are registered trademarks
<BR>and fPcgi is a trademark of fP Technologies, Inc.</H3>
<font face="Verdana" size=-2>
Copyright 2001, fP Technologies, Inc. All Rights Reserved
<P><I>These sample HTML documents and filePro processing tables are covered under the terms and conditions of the fP Technologies, Inc. Program License Agreement</I></P>
</CENTER>
rev. 3/21/2001</font>
</BODY>
</HTML>

Mar 23, 2001  08:39           File Name: democgi                   Page   1
                             Processing: demosave

   1 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: declare fp_fieldnumber, fp_contents, fp_os, fp_ret
   2 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: dim flds(999):1
   3 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:                                        ' Canned txt file right now
       Then: fn=@PW;    fn=fn{".txt"
   4 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: fp_os=@OS
   5 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
isdos    If: fp_os co "DOS"
       Then:
   6 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
isunix   If: fp_os co "UNIX" or fp_os co "LINUX" or fp_os co "SUN"
       Then:
   7 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
get1     If:                                                 'Import Record
       Then: import ascii imp=(fn) f=255 r=\n
   8 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: not imp
       Then: goto endit
   9 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
arnd     If:
       Then: aa(1033,*) = imp(1)
  10 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: aa eq " "
       Then: goto get1
  11 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: v(3)=instr(aa,",");
  12 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: ja(20)=mid(aa,"6",v-"6");    w(3)=v+"1"
  13 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: jb(250)=mid(aa,w,"100");
  14 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ja co "_"
       Then: gosub sav@;        goto get1
  15 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: gosub update
  16 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: goto get1
  17 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
update   If:
       Then:
  18 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ' store field number into fp_field
       Then: 'msgbox ja
  19 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
isField  If: ja ne "" AND mid(aa,"1","5")="Field"
       Then: flds(ja)=jb ; fp_fieldnumber=ja ; fp_contents=jb
  20 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: isField AND jb="" AND ja="24"
       Then: flds(ja)=rn



Mar 23, 2001  08:39           File Name: democgi                   Page   2
                             Processing: demosave

  21 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
is22     If: isField AND ja="22"
       Then: xt=tohtml(jb)
  22 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: is22
       Then: flds(ja)=xt
  23 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: mid(aa,"1","6") = "Return"
       Then: fp_ret=jb
  24 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ja ne "" AND mid(aa,"1","5")="dummy"
       Then: return
  25 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: not isField
       Then: fp_contents=fp_contents<"<BR>"{aa{"" ; flds(fp_fieldnumber)=fp_cont
             ents
  26 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: 19=@td ; 21=@tm
  27 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: return
  28 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
sav@     If: ja co "_rn"
       Then: rn(8,,g)=jb;   gosub sitonit
  29 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: return
  30 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
sitonit  If: rn eq "0"
       Then: lookup new = democgi r=free  -n
  31 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: sitonit
       Then: rn=new[@rn] ; write new
  32 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: sitonit
       Then: lookup -  r=rn   -e
  33 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: return
  34 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
endit    If:
       Then: write
  35 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ' Put Create return document here
       Then:
  36 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ' Stores -rw flag in field 20 For debugging purposes
       Then:  20=@pw
  37 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
bldhtml  If: ' Create return document
       Then: html "1" :CR @pw{".htm" :TI "Return Thank You"
  38 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :BO
  39 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :HR
  40 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :TX  "<CENTER><FONT COLOR=RED>Your New Stored Message:</FO
             NT>"

Mar 23, 2001  08:39           File Name: democgi                   Page   3
                             Processing: demosave

  41 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :TX "<BR>[Reference #:"<24<"Record #:"<@rn{"]"
  42 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :TX 22{"</CENTER>"
  43 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :HR
  44 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :H2 "Thank you <FONT color=red>"<2<"</FONT> for sending us
              this message" :AL "center"
  45 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :HR
  46 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :TX "<CENTER>"
  47 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: lh=getenv("PFSERVER"){""
  48 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :TX "<A HREF=\"/"{fp_ret{"\">Return to Main Page</A>"
  49 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :HR
  50 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :TX "<B><I>This web page was interactively created in HTML
              at "<@tm<" on "<@t4
  51 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :TX "<BR>by filePro processing using the HTML Command</I><
             /B>"
  52 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :TX "</CENTER>"
  53 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :HR
  54 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :H4 "Database software provided by fP Technologies, Inc. h
             ome of filePro®" :AL "center"
  55 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :CL
  56 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: end

<HTML>
<!.. Copyright 2001, fP Technologies,Inc. All Rights Reserved>
<!.. Author Lee Machan>
<!.. Last Revision 3/21/2001 LHM>
<SCRIPT language=javascript>
function getHost()
{  var fphost=location.hostname
     document.myform.action="http://" + fphost + "/cgi-bin/fpcgi"
}
</SCRIPT>
<BODY onload="getHost()">
<FORM name="myform" ACTION="" METHOD="POST">
<INPUT TYPE="HIDDEN" NAME="Field_ddir" value="/usr/local/apache/htdocs/">
<INPUT TYPE="Hidden" NAME="Field_rn" VALUE="1">
<INPUT TYPE="HIDDEN" NAME="Field_base" value="xdemo" >
<INPUT TYPE="HIDDEN" NAME="Field_fn" value="democgi" >
<INPUT type="hidden" name="Field_cmd" value="rreport democgi -sr 1 -fp demofind -n">
<INPUT type="hidden" name="Return" value="fpcgidemosco.htm"
<CENTER>
<table border=0>
<TR>
<TD><B><I>Retrieve any Messages You Saved?</I></B></TD>
<TR>
</TABLE>
<TABLE BORDER="3" bgcolor="#D3D3D3">
<TR>
<TD ALIGN="RIGHT"><I>Search Value?</I></TD>
<TD colspan=5><INPUT name="UsingThis" size="40" maxlength="40" ></TD>
</TR>
<TR>
<TD>
<SELECT SIZE="1" NAME="Field_newonly">
<OPTION VALUE="Y" SELECTED="SELECTED">Show New Messages Only</OPTION>
<OPTION VALUE="N">Show New and Read</OPTION>
</SELECT>
</TD>
<TD colspan=5>
<SELECT SIZE="1" NAME="Field_findby">
<OPTION VALUE="indexA" SELECTED="SELECTED">Find by Your Customer Code</OPTION>
<OPTION VALUE="indexB">Find by From Last Name</OPTION>
<OPTION VALUE="indexC">Find by From Company Name</OPTION>
<OPTION VALUE="indexD">Find by From E-mail Address</OPTION>
<OPTION VALUE="indexE">Find by Message To Name</OPTION>
<OPTION VALUE="indexF">Find by Message Reference #</OPTION>
</SELECT>
</TD>
</TR>
</TABLE>
<HR>
<INPUT TYPE="Submit" VALUE="Retrieve Messages">
<INPUT TYPE="RESET" VALUE="Clear Form">
</CENTER>
<HR>
</FORM>
<BLOCKQUOTE>
<OL>
<LI>Enter the value of the item you want to search for.
<LI>Using the drop down list, select whether you want to view New only or New and Read.
<LI>Using the second drop down box, select the search criteria.
<LI>Click on the Retrieve Messages button.
</OL>
</BLOCKQUOTE>
<CENTER>
<P>You can use your browser to view the HTML source and see how fPcgi is set up to run filePro processing.</P>
<HR>
<IMG SRC="images/pwrfpcgi.gif">
<HR>
<H3>filePro and filePro Plus are registered trademarks
<BR>and fPcgi is a trademark of fP Technologies, Inc.</H3>
<font face="Verdana" size=-2>
Copyright 2001, fP Technologies, Inc. All Rights Reserved
<P><I>These sample HTML documents and filePro processing tables are covered under the terms and conditions of the fP Technologies, Inc. Program License Agreement</I></P>
</CENTER>
rev. 3/21/2001</font>
</BODY>
</HTML>

Mar 23, 2001  08:39           File Name: democgi                   Page   1
                             Processing: demofind

   1 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ' Copyright 2000, fP Technologies, Inc. All rights reserved
       Then: declare fp_copyright, fp_ret
   2 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: fp_copyright="Copyright 2000, fP Technologies, Inc. All rights rese
             rved"
   3 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ' DEMOFIND  example of processing that accepts a customer # and ret
             urns an HTML document with list of messages
       Then:
   4 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: declare fp_fieldnumber, fp_contents, fp_os ,fp_newonly
   5 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ' default = show New and Read Messages
       Then: fp_newonly="N"
   6 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: fp_os = @os
   7 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
isdos    If: fp_os co "DOS"
       Then:
   8 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
isunix   If: fp_os co "UNIX"  OR fp_os co "LINUX"
       Then:
   9 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: dim flds(999):1
  10 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:                                        ' Canned txt file right now
       Then: fn=@PW;    fn=fn{".txt"
  11 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: gosub htmlbld
  12 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
get1     If:                                                 'Import Record
       Then: import ascii imp=(fn) f=255 r=\n
  13 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: not imp
       Then: goto done
  14 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
arnd     If:
       Then: aa(1033,*) = imp(1)
  15 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: aa eq " "
       Then: goto get1
  16 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: '                      PARSE Input line uses first comma found
       Then: v(3)=instr(aa,",");
  17 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: ja(20)=mid(aa,"6",v-"6");    w(3)=v+"1"
  18 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: jb(250)=mid(aa,w,"100");
  19 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ja co "_"
       Then: gosub setidx;      goto get1




Mar 23, 2001  08:39           File Name: democgi                   Page   2
                             Processing: demofind

  20 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: mid(aa,"1","6") = "Return"
       Then: fp_ret=jb ; goto get1
  21 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: aa = "UsingThis"
       Then: gosub findit   ; goto get1
  22 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: goto get1
  23 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
findit   If:
       Then: io=mid(jb,"1","40")
  24 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: return
  25 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
setidx   If: ja co "_fn"               ' PUT Field_fn as first Hidden Field
       Then: o(32,,g)=jb
  26 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ja co "_newonly"           ' Set Show New Only Flag
       Then: fp_newonly=jb
  27 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ja co "_findby"           ' PUT Field_findby at end of hidden field
             s
       Then: ts=jb          ; goto  indrtn
  28 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: return
  29 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
indrtn   If:                        ' INDEXA...B...C is stored in ts at this poi
             nt
       Then: tt=mid(ts,"6","1")
  30 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: tt eq "A"
       Then: goto  indxa
  31 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: tt eq "B"
       Then: goto  indxb
  32 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: tt eq "C"
       Then: goto  indxc
  33 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: tt eq "D"
       Then: goto  indxd
  34 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: tt eq "E"
       Then: goto  indxe
  35 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: tt eq "F"
       Then: goto  indxf
  36 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: not ind
       Then: goto norecs
  37 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: n=ind[@rn]
  38 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: lookup -  r=n    -np




Mar 23, 2001  08:39           File Name: democgi                   Page   3
                             Processing: demofind

  39 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: return
  40 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
indxa    If:
       Then: fb=io{""
  41 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: fb=""
       Then: goto norecs
  42 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: lookup ind = (o) k=io i=A -npx
  43 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
noa      If: not ind       ' first time
       Then: goto norecs
  44 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
againa   If: not ind
       Then: goto done
  45 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ind[1]= io
       Then: gosub htmlmsg
  46 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ind[1] ne io
       Then: goto done
  47 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: getnext ind
  48 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: goto againa
  49 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
indxb    If:
       Then: fb=io{""
  50 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: fb=""
       Then: goto norecs
  51 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: lookup ind = (o) k=io   i=B   -npx
  52 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
nob      If: not ind       ' first time
       Then: goto  norecs
  53 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
againb   If: not ind
       Then: goto done
  54 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ind[4] ne io
       Then: goto done
  55 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ind[4]= io
       Then: gosub htmlmsg
  56 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: getnext ind
  57 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: goto againb
  58 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
indxc    If:
       Then: fb=io{""



Mar 23, 2001  08:39           File Name: democgi                   Page   4
                             Processing: demofind

  59 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: fb=""
       Then: goto norecs
  60 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: lookup ind = (o) k=io   i=C   -npx
  61 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
noc      If: not ind       ' first time
       Then: goto  norecs
  62 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
againc   If: not ind
       Then: goto done
  63 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ind[6]= io
       Then: gosub htmlmsg
  64 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ind[6] ne io
       Then: goto done
  65 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: getnext ind
  66 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: goto againc
  67 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
indxd    If:
       Then: fb=io{""
  68 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: fb=""
       Then: goto norecs
  69 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: lookup ind = (o) k=io   i=D   -npx
  70 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
nod      If: not ind       ' first time
       Then: goto  norecs
  71 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
againd   If: not ind
       Then: goto done
  72 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ind[17]= io
       Then: gosub htmlmsg
  73 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ind[17] ne io
       Then: goto done
  74 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: getnext ind
  75 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: goto againd
  76 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
indxe    If:
       Then: fb=io{""
  77 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: fb=""
       Then: goto norecs
  78 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: lookup ind = (o) k=io   i=E   -npx



Mar 23, 2001  08:39           File Name: democgi                   Page   5
                             Processing: demofind

  79 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
noe      If: not ind       ' first time
       Then: goto  norecs
  80 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
againe   If: not ind
       Then: goto done
  81 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ind[23]= io       ' FLAG MESSAGE AS READ
       Then: gosub htmlmsg ; ind[25]="Y"
  82 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ind[23] ne io
       Then: goto done
  83 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: getnext ind
  84 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: goto againe
  85 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
indxf    If:
       Then: fb=io{""
  86 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: fb=""
       Then: goto norecs
  87 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: lookup ind = (o) k=io   i=F   -npx
  88 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
nof      If: not ind       ' first time
       Then: goto  norecs
  89 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
againf   If: not ind
       Then: goto done
  90 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ind[24]= io
       Then: gosub htmlmsg
  91 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ind[24] ne io
       Then: goto done
  92 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: getnext ind
  93 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: goto againf
  94 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
HTMLBLD  If: ' Create return document using fpcgi provided -rw flag value
       Then: html "1" :CR @pw{".htm" :TI "Return Thank You"
  95 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :BO
  96 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :HR
  97 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :CE
  98 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :FN :CO "#FF0000"



Mar 23, 2001  08:39           File Name: democgi                   Page   6
                             Processing: demofind

  99 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :TX  "Your Stored Message(s):"
 100 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TX  "<BR>Unread Messages are shown in red..."
 101 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :FN-
 102 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TA :BO "2"
 103 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TR
 104 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TH :AL "Center"
 105 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TX "Message to"
 106 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TH-
 107 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TH :AL "Center"
 108 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TX "From"
 109 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TH-
 110 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TH :AL "Center"
 111 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TX "Date"
 112 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TH-
 113 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TH :AL "Center"
 114 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TX "Time"
 115 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TH-
 116 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TH :AL "Center"
 117 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TX "Ref #:"
 118 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TH-



Mar 23, 2001  08:39           File Name: democgi                   Page   7
                             Processing: demofind

 119 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TH :AL "Center"
 120 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TX "Message"
 121 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TH-
 122 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TH :AL "Center"
 123 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TX "Call Them?"
 124 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TH-
 125 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TR-
 126 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: RETURN
 127 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
HTMLMSG  If: ' format each message into table row here
       Then:
 128 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: fp_newonly ="Y" AND ind[25]="Y"    ' If Show only New = "Y" and mes
             sage is already read.
       Then: return
 129 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TR
 130 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TD :AL "left" :VL "Top"
 131 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TX  ind[23]
 132 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TD-
 133 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TD :AL "left" :VL "Top"
 134 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TX  ind[2]<ind[3]<ind[4]
 135 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TD-
 136 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TD :AL "left" :VL "Top"
 137 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TX  ind[19]
 138 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TD-


Mar 23, 2001  08:39           File Name: democgi                   Page   8
                             Processing: demofind

 139 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TD :AL "center" :VL "Top"
 140 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TX ind[21]
 141 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TD-
 142 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TD :AL "left" :VL "Top"
 143 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TX (ind[24])
 144 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TD-
 145 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TD :AL "left" :VL "Top"
 146 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ind[25]="N"
       Then: HTML "1" :FN :CO "red"
 147 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TX ind[22]
 148 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ind[25]="N"
       Then: HTML "1" :FN-
 149 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TD-
 150 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TD :AL "center" :VL "Top"
 151 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ind[26]="Y"
       Then: HTML "1" :FN :CO "red"
 152 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TX ind[26]
 153 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: ind[26]="Y"
       Then: HTML "1" :FN-
 154 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TD-
 155 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TR-
 156 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: return
 157 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
NORECS   If:
       Then:
 158 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :FN :CO "#FF0000"



Mar 23, 2001  08:39           File Name: democgi                   Page   9
                             Processing: demofind

 159 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1"  :TX "No messages were found as specified below"
 160 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :FN-
 161 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
done     If:
       Then: HTML "1" :HR
 162 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
HTMLEND  If:
       Then: html "1" :TA-
 163 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: fb=""
       Then: io="No value specified"
 164 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: tt="A"
       Then: HTML "1" :TX "Select Criteria... By FROM Customer Code:<FONT COLOR=
             #FF0000>"<io<"</FONT>"
 165 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: tt="B"
       Then: HTML "1" :TX "Select Criteria... By FROM Last Name:<FONT COLOR=#FF0
             000>"<io<"</FONT>"
 166 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: tt="C"
       Then: HTML "1" :TX "Select Criteria... By FROM Company Name:<FONT COLOR=#
             FF0000>"<io<"</FONT>"
 167 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: tt="D"
       Then: HTML "1" :TX "Select Criteria... By FROM E-mail Address:<FONT COLOR
             =#FF0000>"<io<"</FONT>"
 168 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: tt="E"
       Then: HTML "1" :TX "Select Criteria... By Message TO Name:<FONT COLOR=#FF
             0000>"<io<"</FONT>"
 169 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If: tt="F"
       Then: HTML "1" :TX "Select Criteria... By Message Reference #:<FONT COLOR
             =#FF0000>"<io<"</FONT>"
 170 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :TX "<BR>"
 171 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :TX "<A HREF=\"/"{fp_ret{"\">Return to Main Page</A>"
 172 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :HR
 173 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :TX "<B><I>This web page was interactively created in HTML
              at "<@tm<" on "<@t4
 174 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :TX "<BR>by filePro processing using the HTML Command</I><
             /B>"
 175 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :HR

Mar 23, 2001  08:39           File Name: democgi                   Page  10
                             Processing: demofind

 176 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :IM :SR "/images/pwrfpcgi.gif"
 177 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: HTML "1" :CE-
 178 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :HR
 179 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :H4 "Database software provided by fP Technologies, Inc. h
             ome of filePro®" :AL "center"
 180 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: html "1" :CL
 181 -------   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -   -
         If:
       Then: end

Troubleshooting fPcgi

The four most common reasons that fPcgi applications do not work are:

1. The environment settings in the .profile and the fpcgi.env files are incorrect and do not reflect the proper locations of the filePro executibles and filepro application files.
2. The httpd.conf file does not reflect the correct CGI-BIN directory and execute previledges and the correct filepro executibles location and execute previledges.
3. The HTML form document has errors such as missing required fPcgi hidden fields, incorrect values for these hidden fields, or an incorrect action line that is failing to execute fPcgi in the first place.
4. There is an error or halt in the execution of the filepro processing tables that fPcgi is running.

If the sample demo application does not run properly [usually indicated as a lack of a return document after you hit the submit function], check items 1 and 2:

• Check to see if a flat file was created in the right place by fPcgi. If not the ScriptAlias for the CGI-BIN directory setting in httpd.conf is wrong.
• If the flat file was created, then the either the httpd.conf setting for the /appl/fp directory is wrong or the fpcgi.env file environment variables are wrong.

If the sample demo does run but your application does NOT, there is probably an error in your processing table or HTML document.

A quick way to analyze what is going wrong is to determine what the flat ascii filename fPcgi just ran [look in the htdocs directory for the most recent .txt file]. Then when in the htdocs directory, from a command line prompt, run the command that fPcgi was supposed to run and add the appropriate -rw flag to the end of it.

• For instance, say the name of the flat file was xdemo040.txt and the Field_cmd was rreport democgi -sr 1 -fp demofind
• Run the following command from the command line prompt while in the htdocs directory: /appl/fp/rreport democgi -sr 1 -fp demofind -rw  /usr/local/apache/htdocs/xdemo040
  Note that fPcgi fully paths the filepro command and the -rw flatfilename extension it adds.
• filePro should report why the processing table failed to complete.

If you still have trouble, the key files to re-examine for correct settings are fpcgi.env, httpd.conf, the profile files, the fpcgi.log [found in /tmp] and ownership/permissions.
